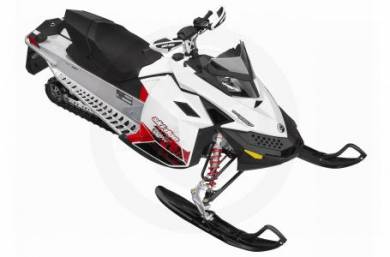

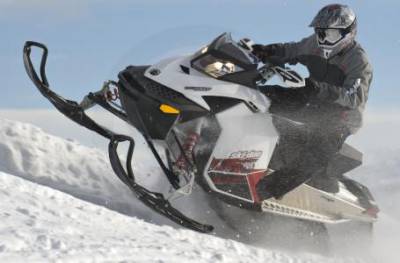

2010 Ski-Doo MX Z TNT ROTAX 550F SOLD

Product Description

Engine Type: Rotax 550F
Displacement: 33.8 in. (553.4 cc)
Bore x Stroke: Bore: 3 in. (76 mm); Stroke: 2.4 in. (61 mm)
Cylinders: 2
Engine Cooling: Axial fan-cooled
Carburetion: 2X VM-30
Exhaust: Single tuned-pipe, baffle muffler
Brake Type: Brembo hydraulic brake
Drive Clutch: TRA III
Driven Clutch: LPV VSA
Front Suspension: Front suspension: Dual A-arm; Front shock: HPG Plus
Front Travel: 9 in. (229 mm)
Rear Suspension: Rear suspension: SC-5; Rear shock: HPG Plus
Rear Travel: 15 in. (381 mm)
Ski Type: Pilot 5.7
Ski Stance: 42.4 in. (1077 mm)
Track Dimensions: Nominal width: 15 in. (381 mm); Nominal length: 120 in. (3051 mm); Profile height: 1.25 in. (31.8 mm)
Speedometer: Standard
Tachometer: Standard
Fuel Capacity: 10.6 gal. (40 l)
Dry Weight: 411 lbs. (187 kg)
Windshield: 5.5 in. (140 mm)
Color: White / White
Electric Start: Optional
Hand & Thumb Warmers: Heated throttle lever: Standard; Heated grips: Standard
Reverse: RER
Mirrors: Optional
