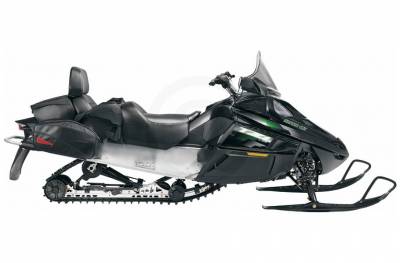

2009 Arctic Cat TZ1 LXR SOLD

Product Description

THE EARTH IS ROUND. SO ALL GOOD THINGS DON'T HAVE TO COME TO AN END.


Arctic Cat Touring machines are your ticket to the world's winter wonderlands. This year the entire Touring lineup shares the Twin Spar chassis. Yes, Bearcat® included. This Twin Spar Ride has been stretched, strengthened and reinforced. These machines provide a lot of comfort and obviously a lot of room. Once folks get wind of what you're riding, well, let's just say your passenger seat will rarely go unoccupied. Needless to say these touring machines are built to cover a lot of ground, fully loaded. And that ought to keep everybody fully happy.


IRP: Infinite Rider Positioning - The adjustable seat, handlebars and footrests let you find your ideal riding position. Pair IRP with the Twin Spar chassis and you can fine tune the riding position to maximize comfort in all riding conditions.


DELUXE GAUGE: The deluxe gauge lets you choose between digital and analog speed and tach readouts. There is also an odometer, two trip meters, engine hour meter, clock, fuel level indicator, altimeter, reverse indicator and warning lights. It also serves as a hub for the optional Cat Comm communications system.


REMOTE ELECTRIC START: Warm up your sled without getting cold. Remote electric start is one of the many creature comforts found on this LXR.


4 STROKE TURBOCHARGED Z1 ENGINE: The 1056cc 4-Stroke twin with Electronic Fuel Injection was already perfect. The net effect is nothing short of jaw-dropping. And this one won't be lose power at high elevation. So if you want the highest horsepower in the industry, then this is your lucky year.


2-UP DETACHABLE SEAT: The adjustable backrest and handholds are a passenger's best friend. For extended solo rides, remove the passenger seat and you'll find enough room to pack a week's worth of supplies.


SOFT REAR LUGGAGE: Three easy to remove storage compartments are perfect for keeping organized. Use one, two or all three at any time. What's more, the center bag is expandable. It actually doubles your storage capacity when riding solo.


HEATED SEATS: Heated Driver and Passenger seats come standard. Flip a switch, sit back and enjoy the ride in comfort.
SPECIFICATIONSENGINE TYPE, DISPLACEMENT COOLING AND CYLINDERS: Suzuki 4-stroke, 1056cc, liquid, twin
BORE x STROKE: 98 mm x 70 mm
LUBRICATION: dry sump
IGNITION: full transistor/coil at plug
CARBURETION: 48 mm dual throttle body EFI
EXHAUST: stainless steel
DRIVE: Arctic (rpm sensing)
DRIVEN CLUTCH: Arctic (roller cam) ACT drive system
SKI STANCE: 43 in.
SKI MATERIAL: UHMW plastic saddleless
FRONT SUSPENSION: AWS VII double-wishbone A-arms with Ryde FX shocks and sway bar
FRONT TRAVEL: 9.5 in.
REAR SUSPENSION: slide-action frame with coupling blocks, adjustable torsion springs and hydraulic twin tube front-arm shock, 2" dia. rear-arm shock, fiberglass overload springs, Torque Sensing Link rear arm
REAR TRAVEL: 13.3 in.
TRACK WIDTH x LENGTH x LUG: 15 in. x 144 in. x 1.0 in.
BRAKES: hydraulic disc
FUEL CAPACITY: 10.8 gal.
LENGTH x WIDTH: 128 in. x 47 in.
HEADLIGHT: dual halogen (4-bulb)
STANDARD EQUIPMENT: digital/analog tachometer, digital/analog speedometer, dual stage trip odometer, electric gas gauge, low oil light, coolant overheat light, electric start, remote electric start, pushbutton reverse, mirrors, high/low hand warmer, high/low thumb warmer, heated driver and passenger seats, high windshield, detachable passenger seat, rack, 3 storage bags, infinite rider positioning, passenger handwarmers, passenger wind deflectors, adjustable backrest, accessory outlet, clock, deluxe guage
OPTIONAL 2-way radio communication, engine heater, tether switch, hitch
AVAILABLE COLORS: Black
